1. Product Features:
Material: The product is made of metal, and the surface is chrome-plated, which has good corrosion resistance and aesthetics.
Design: The design is simple and the structure is compact, suitable for a variety of door types and cabinet doors.
Function:
Locking function: Locking and unlocking are achieved through the internal release handle, which increases safety.
Hinge function: Provides the opening and closing function of the door, allowing the door to open and close smoothly.
Accessories: Includes an adjustment rod with a spring to adjust the closing force and speed of the door.
2. Technical specifications:

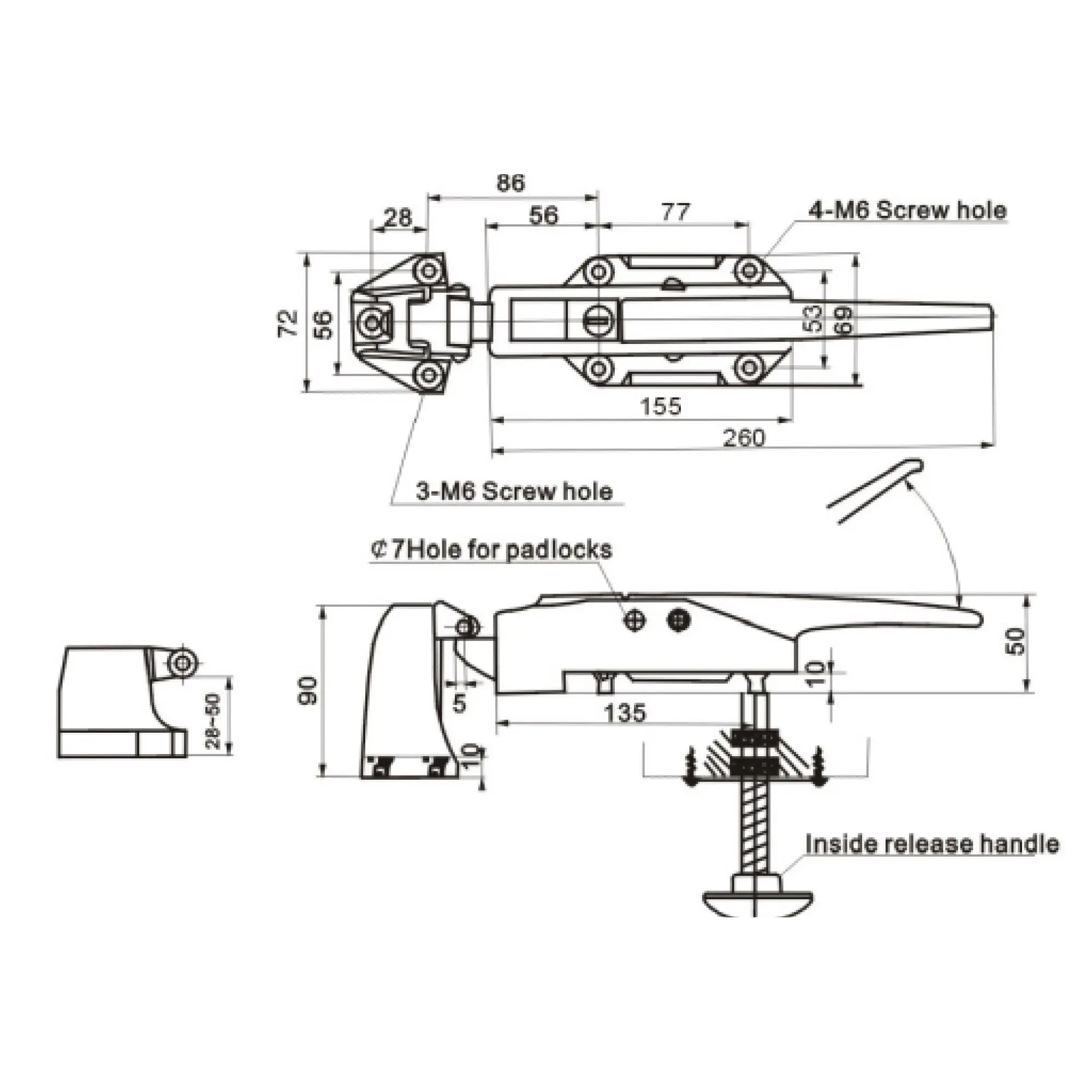

Dimensions:
Total length: 260 mm
Height: 72 mm
Width: 155 mm
Hole position:
4 M6 screw holes for fixing the hinge part.
3 M6 screw holes for fixing the locking part.
A hole with a diameter of 7 mm for padlock.
Others:
Internal release handle for unlocking the door from the inside.
Adjustment rod for adjusting the closing force of the door.
3. Installation steps:
Preparation: Mark and drill holes on the door and door frame.
Fixing: Use M6 screws to fix the hinges and locking parts to the corresponding holes.
Adjustment: Use the adjustment rod to adjust the closing force and speed of the door to ensure that the door can open and close smoothly.
Test: After completing the installation, test the locking and opening and closing functions of the door to ensure that everything is normal.
