1. Product Overview

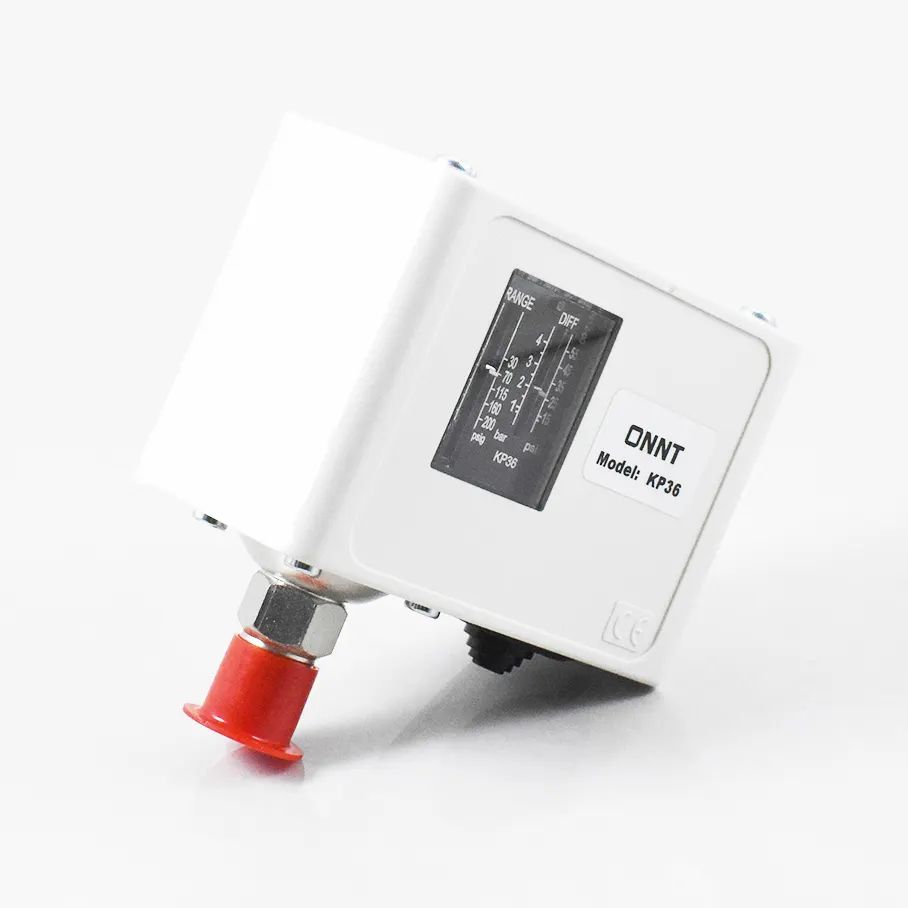

Danfoss KP36 pressure controller is a high-precision pressure control device widely used in air conditioning and commercial refrigeration systems to monitor and adjust system pressure to ensure safe operation of equipment.

2. Main features
Pressure adjustment range: 2.00 bar to 14.00 bar (29 psi to 203 psi), suitable for a variety of refrigerants.
Pressure difference adjustment: 0.70 bar to 4.00 bar (10 psi to 58 psi), which can be adjusted according to actual needs.
Reset function: automatic reset to ensure that the system automatically resumes operation after the pressure returns to normal.
Electrical connection: rubber cable gland or rotating cable connector, size 6-14 mm or NPSM 1/2.
Contact function: single-pole double throw (SPDT), contact rating is AC15=10 A, 400 V.
Environmental adaptability: operating temperature range is -40°C to 65°C (-40°F to 149°F), suitable for a variety of harsh environments.
Protection level: The housing protection level is IP30, providing good dust protection.

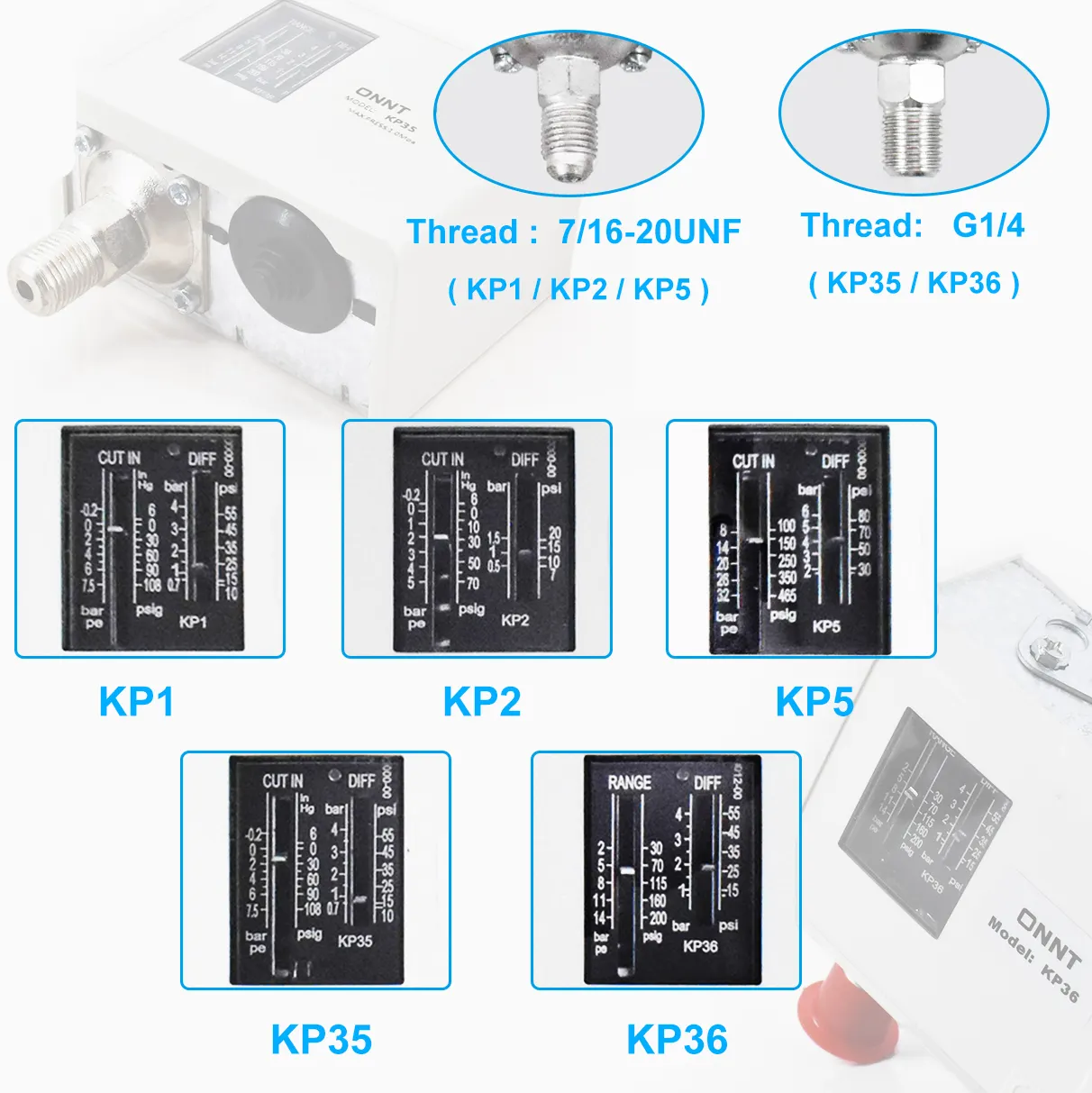

Pressure connection: 1/4 inch external thread (R1/4 or NPT), in accordance with ISO 7-1 or ANSI/ASME B1.20.1 standards.
Certification: Complies with CE, UL, CCC, RoHS and other international certifications.

3. Technical specifications
Maximum working pressure: 17 bar (245 psig).
Maximum test pressure: 22 bar (319 psig).
Pressure sensing element: bellows.
Electrical properties: Insulation voltage 400V, pollution degree 3, rated pulse voltage 4 kV.
