STC-8090 digital temperature controller is a device for precise temperature control, suitable for a variety of industrial and commercial applications. The following is a detailed description of the product:
1. Product functions:
Temperature monitoring and control: Real-time monitoring and automatic adjustment of system temperature to ensure that the equipment operates within the set temperature range.
Digital display: Provides a clear digital display for users to view the current temperature in real time.
Temperature setting: Users can easily set the desired temperature through the buttons on the control panel.
Relay output: Built-in relay output can control the switch of external devices such as heaters, coolers, etc.
2. Product features:
High precision: Adopts NTC sensor to provide high-precision temperature measurement.
Wide voltage range: Supports 220VAC±10% voltage input to adapt to different power supply environments.
Low power consumption: Power consumption is less than 5W, energy saving and environmental protection.
Wide temperature measurement range: Able to measure the temperature range of -40°C to +99°C.
High humidity adaptability: Works normally in the relative humidity range of +20% to +85% (no condensation).
Compact design: The front panel size is 71mm (length) x 29mm (width), and the overall product size is 75mm (length) x 34.5mm (width) x 85mm (depth), suitable for installation in limited space.

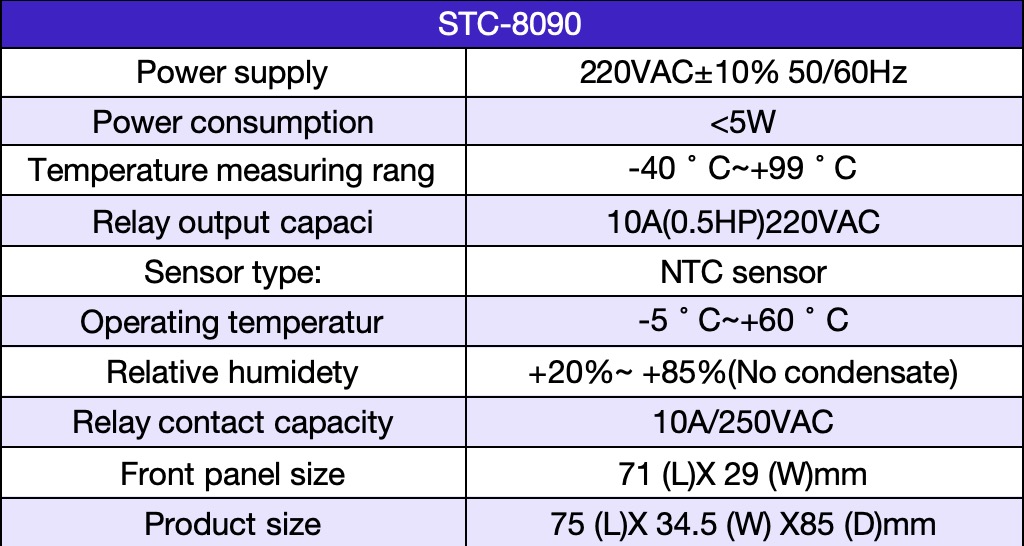

3. Technical specifications:
Power supply: 220VAC±10%, 50/60Hz
Power consumption: <5W
Temperature measurement range: -40°C to +99°C
Relay output capacity: 10A (0.5HP) 220VAC
Sensor type: NTC sensor
Operating temperature: -5°C to +60°C
Relative humidity: +20% to +85% (non-condensing)
Relay contact capacity: 10A/250VAC
Front panel size: 71mm (length) x 29mm (width)
Product size: 75mm (length) x 34.5mm (width) x 85mm (depth)
