STC-1000 digital temperature controller is a high-performance temperature control device suitable for various industrial and commercial environments. The following is a detailed description of the product:
1. Product functions:
Temperature monitoring and control: Real-time monitoring and control of the temperature of the environment or equipment to ensure that the system operates within the set temperature range.
Digital display: Provides a clear digital display for users to view the current temperature in real time.
Temperature setting: Users can easily set the desired temperature through the buttons on the control panel.
Relay output: Built-in relay output can control the switch of external devices such as heaters, coolers, etc.
2. Product features:
High precision: Adopts NTC sensor to provide high-precision temperature measurement.
Wide voltage range: Supports 220VAC±10% voltage input to adapt to different power supply environments.
Low power consumption: Power consumption is less than 3W, energy saving and environmental protection.
Wide temperature measurement range: Able to measure the temperature range of -50°C to +99°C.
High humidity adaptability: Works normally within the relative humidity range of ≤85% (no condensation).
Compact design: The installation dimensions are 71mm (length) x 29mm (width), and the overall product dimensions are 75mm (length) x 34.5mm (width) x 85mm (depth), suitable for installation in limited spaces.

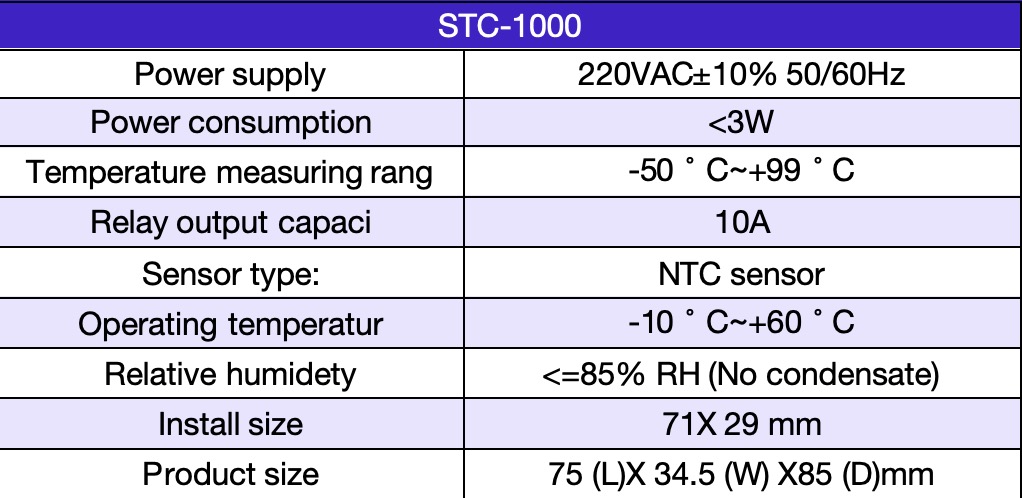

3. Technical specifications:

Power supply: 220VAC±10%, 50/60Hz
Power consumption: <3W
Temperature measurement range: -50°C to +99°C
Relay output capacity: 10A
Sensor type: NTC sensor
Operating temperature: -10°C to +60°C
Relative humidity: ≤85% RH (non-condensing)
Installation dimensions: 71mm (length) x 29mm (width)
Product dimensions: 75mm (length) x 34.5mm (width) x 85mm (depth)
