STC-200 DIGITAL TEMPERATURE CONTROLLER

The STC-200 digital temperature controller is a temperature control device designed for industrial and laboratory environments. It integrates advanced temperature sensing technology with an intuitive digital interface to provide users with an efficient and accurate temperature regulation solution.Design:The STC-200 digital temperature controller has a compact and sturdy black housing with a striking red digital display on the front. The display shows the current temperature in clear numbers (such as "20.8°C"), allowing users to grasp the ambient temperature at a glance. At the same time, the top of the controller adopts an orange edge design, which not only increases the recognition of the product, but also gives it a touch of modernity.Features:High-precision temperature sensing: The STC-200 is equipped with a high-precision temperature sensor that can accurately monitor ambient temperature changes in real time to ensure the accuracy of temperature control.Intuitive digital interface: The red digital display on the front provides an intuitive temperature display, allowing users to easily read the current temperature setting value and the actual temperature value. At the same time, the numbers on the screen are clear and easy to read, and can maintain good visibility even in low-light environments.Easy-to-use temperature adjustment: The blue button on the controller allows users to easily adjust the temperature setting value. Users can increase or decrease the set temperature by pressing a button according to their needs. In addition, the text "28.8 SET" in the picture indicates that the device may have a preset temperature setting value (28.8°C) and the user can adjust it as needed.Wide applicability: STC-200 digital temperature controller is suitable for various occasions that require precise temperature control, such as laboratories, industrial production lines, storage environments, etc. It can work stably in various environments and provide users with reliable temperature control guarantee.

Variantes

CONTROLADOR DE TEMPERATURA DIGITAL STC-200

Categoría: DIGITAL TEMPERATURE CONTROLLER

Compartir

STC-200 digital temperature controller is a high-precision, high-reliability temperature control device suitable for various industrial and commercial applications. The following is a detailed description of the product:
1. Product functions:
Temperature monitoring and control: Real-time monitoring of the temperature of the environment or equipment, and automatic adjustment of the operating status of related equipment according to the set value.
Digital display: Provides a clear digital display for users to view the current temperature in real time.
Temperature setting: Users can easily set the desired temperature through the buttons on the control panel.
Relay output: Built-in relay output can control the switch of external devices such as heaters, coolers, etc.
2. Product features:
High precision: Adopts NTC sensor to provide high-precision temperature measurement.
Wide voltage range: Supports 220VAC±10%-15% voltage input to adapt to different power supply environments.
Low power consumption: Power consumption is less than 3W, energy saving and environmental protection.
Wide temperature measurement range: Able to measure the temperature range of -40°C to +70°C.
High humidity adaptability: Works normally in the relative humidity range of +20% to +85% (no condensation).
Compact design: The front panel size is 77mm (length) x 34.5mm (width), and the overall product size is 77mm (length) x 34.5mm (width) x 65mm (depth), suitable for installation in limited space.

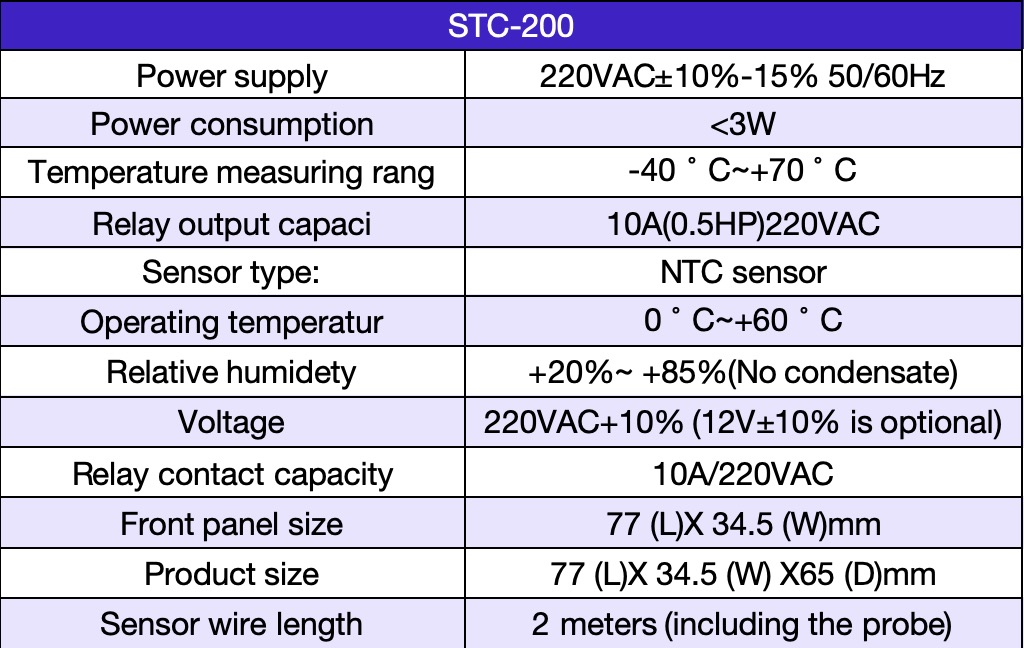

3. Technical specifications:


Power supply: 220VAC±10%-15%, 50/60Hz
Power consumption: <3W
Temperature measurement range: -40°C to +70°C
Relay output capacity: 10A (0.5HP) 220VAC
Sensor type: NTC sensor
Operating temperature: 0°C to +60°C
Relative humidity: +20% to +85% (non-condensing)
Voltage: 220VAC±10% (optional 12V±10%)
Relay contact capacity: 10A/220VAC
Front panel size: 77mm (length) x 34.5mm (width)
Product size: 77mm (length) x 34.5mm (width) x 65mm (depth)
Sensor cable length: 2 meters (including probe)
4. Application scenarios:
STC-200 digital temperature controller is suitable for various occasions requiring precise temperature control, such as:
Refrigeration system
Heating system
Air conditioning system
Industrial process control
Laboratory equipment
