SHADED POLE MOTOR-2

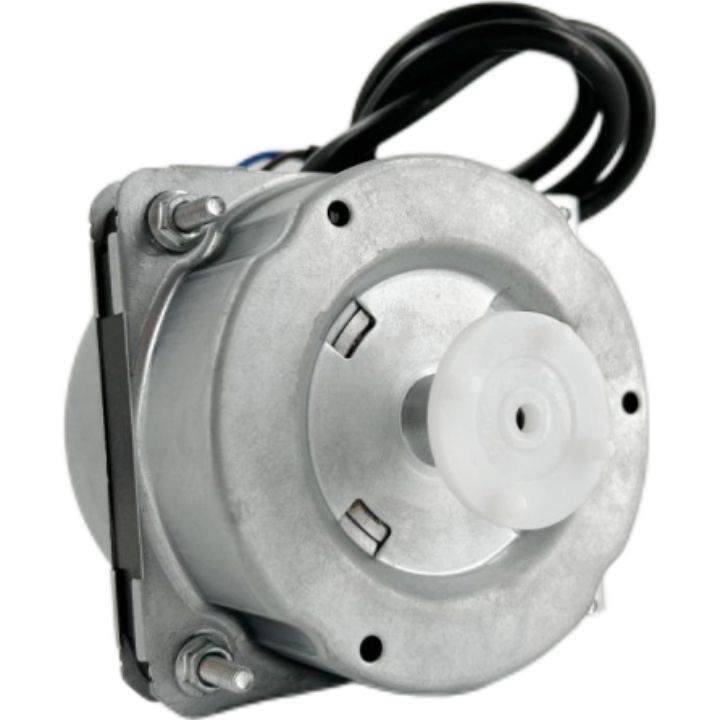

HADED POLE MOTOR-2 is a small motor with exquisite design and stable performance. Its unique metal shell not only provides solid protection for the motor, but also ensures the stability and durability of the motor during operation. The carefully arranged screws and bolts on the shell effectively fix other key components inside the motor, further improving the overall structural strength of the motor.The core part of the motor is a round white plastic rotor, which is a key component to realize the motor's rotation function. Under the action of the motor's electromagnetic field, the rotor can rotate smoothly and continuously, thereby driving the load to work.On one side of the motor, we specially designed a black wire, which is connected to a blue connector. This connector is located on the right side of the motor, which is convenient for users to connect and operate the wire. The material and design of the wire have been strictly screened and tested to ensure that it can maintain good conductivity and durability in various environments.

Variantes

MOTEUR DE POTEAU OMBRAGÉ-2

Catégorie: REFRIGERATION MOTOR

Partager

1. Product Description
Model: YZF Series
Type: Shaded Pole Motor for Refrigeration
Application: Suitable for various refrigeration equipment, such as air conditioners, refrigerators, cold storage, etc.
2. Main Features:
High efficiency: The use of shaded pole technology ensures that the motor can operate efficiently under various working conditions.
Durability: The motor housing is made of high-quality materials with good corrosion resistance and wear resistance, extending the service life.
Low noise: The optimized motor design and precise manufacturing process ensure low noise during motor operation.
Reliability: After strict quality control and testing, the motor can operate stably in various environments.
Easy to install: The motor is compact in design and easy to install, suitable for various refrigeration equipment.

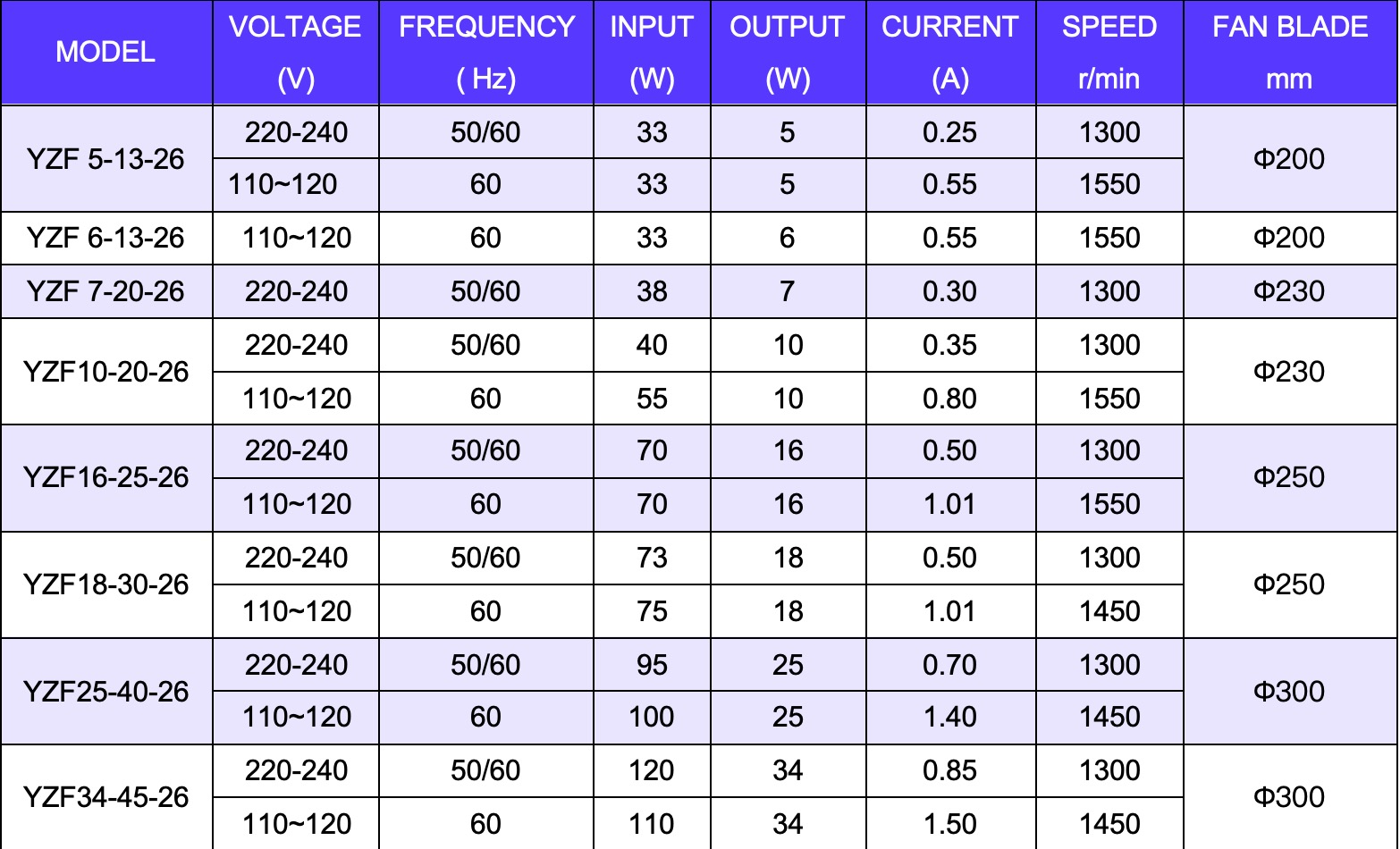

3. Technical parameters:


Voltage: 110~120V or 220-240V
Frequency: 50/60Hz
Input power: 33W to 120W
Output power: 5W to 34W
Current: 0.25A to 1.50A
Speed: 1300 r/min or 1450 r/min or 1550 r/min
Fan blade diameter: Φ200mm, Φ230mm, Φ250mm, Φ300mm
4. Dimensions and installation:

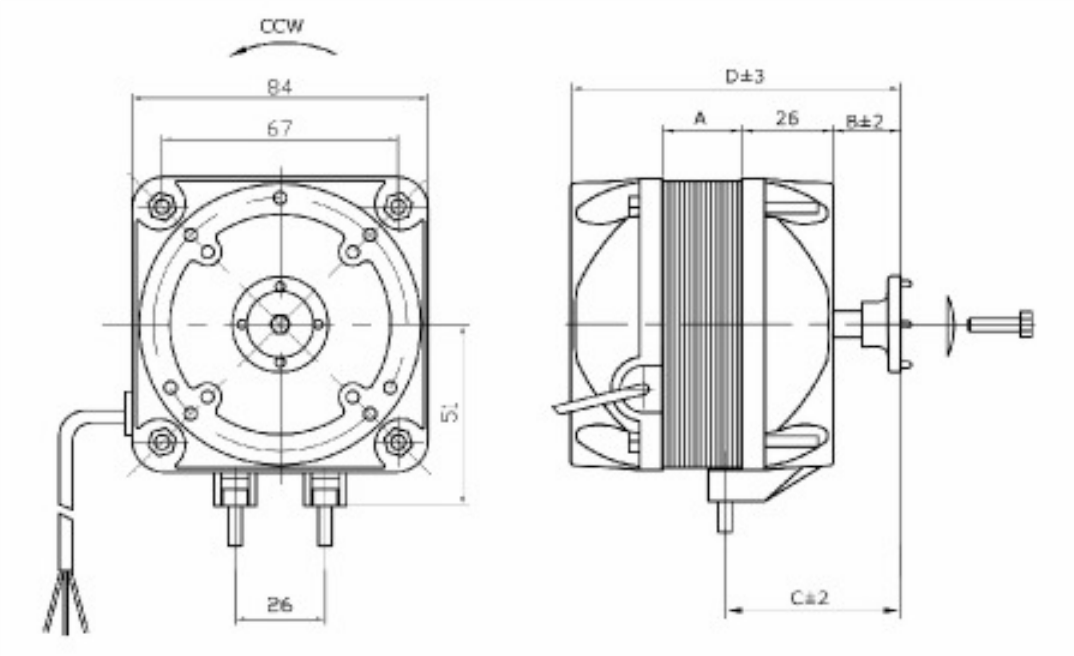

Dimensions: According to the drawings, the dimensions of the motor are 84mm x 67mm x 70mm (length x width x height).
Mounting hole spacing: 26mm
Shaft diameter: Φ71.4mm
Wiring method: [Specific wiring method]
Installation method: [Specific installation method]
5. Operation and maintenance:
Operation: The motor should be operated at the specified voltage and frequency to avoid overload and voltage fluctuations.
Maintenance: Check the running status of the motor regularly, clean the motor housing and heat sink, and ensure that the motor is well ventilated.

logo
Guangzhou Baida Refrigeration Equipment Co., Ltd

Les gens qui ont vu cela ont également vu

BAIDA

MOTEUR DE POTEAU OMBRAGÉ-1

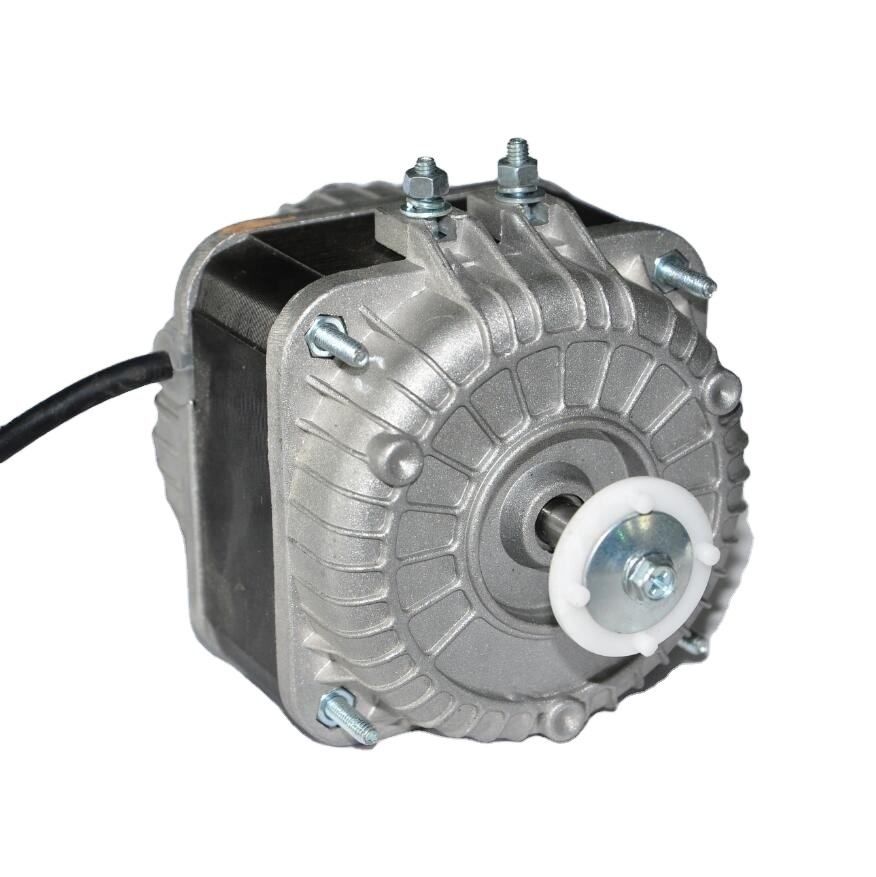

Ce produit est un moteur de réfrigération à usage général haute performance conçu pour répondre aux besoins de divers équipements de réfrigération. Ses principales caractéristiques sont les suivantes :1. Apparence et designCoque argentée : Fabriqué en métal de haute qualité, il a de bonnes performances de dissipation thermique et une résistance à la corrosion, assurant un fonctionnement stable à long terme du moteur. Arbre noir : Un arbre robuste et durable qui peut résister à un couple et à une charge importants pour assurer le fonctionnement normal de l’équipement de réfrigération. Pièce circulaire blanche\x: Fixée à la partie supérieure du moteur par trois vis, il peut s’agir d’une pale de ventilateur ou d’un roulement, utilisé pour la dissipation de chaleur ou le support du système de transmission, selon les exigences de l’application.2. Performances électriquesFil noir et connecteur blanc : Un côté du moteur est équipé d’un fil noir relié à un connecteur blanc, ce qui est pratique pour les utilisateurs de se connecter à l’alimentation électrique ou à d’autres équipements de contrôle. Le connecteur est raisonnablement conçu et facile à brancher et à débrancher, assurant la stabilité et la sécurité de la connexion électrique. Haute efficacité et économie d’énergie : Grâce à une technologie de moteur et à des matériaux de pointe, il réduit efficacement la consommation d’énergie, améliore l’efficacité de la réfrigération et répond aux exigences modernes en matière d’économie d’énergie et de protection de l’environnement.
